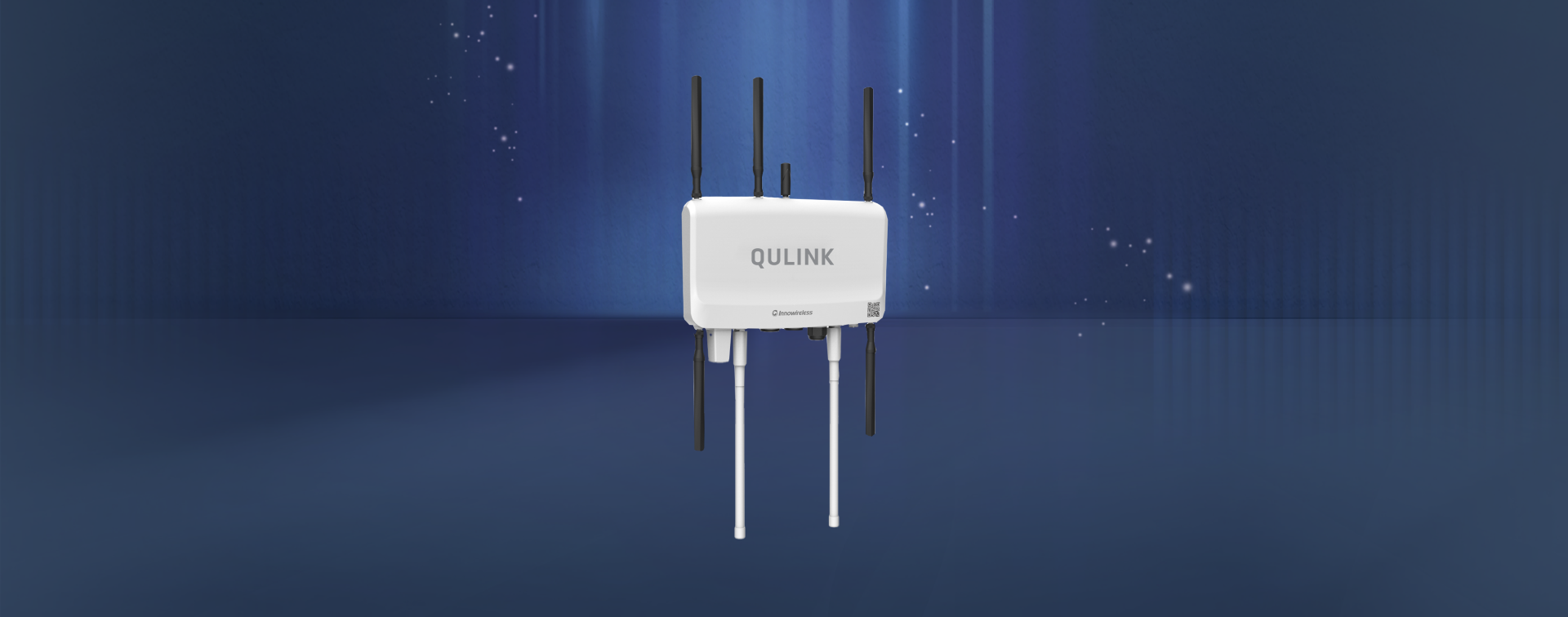

Road Side Unit that supports communication between vehicles and road infrastructure to improve traffic flow, enhance safety, and enable efficient traffic system management
ㆍSupport the latest C-V2X message specification
ㆍ5G NR Ready RSU
ㆍSupports the LTE-V2X direct communication standard PC5 link and the mobile network interface Uu link simultaneously.
ㆍReliable V2X Stack
ㆍData Exchange: Shares traffic and road information with vehicles
ㆍTraffic Control: Manages traffic signals and flow
ㆍSafety Alerts: Warns vehicles about hazards
ㆍData Collection: Gathers traffic data for analysis
ㆍCommunication: Uses V2X technology to connect with various traffic elements
Specification |
|
|---|---|
| CPU | i.MX 8QuadXPlus Cortex-A35 x 4 (Up to 1.2GHz) Cortex-M4F x 1 |
| Memory | LPDDR4 4GB /eMMC 8GB |
| Security | W/ECDSA Block |
| Ethernet | 1Gbps, RJ-45 2 ports(1 for PoE) |
| C-V2X | 23dBm (2x2 MIMO) B47 (5855~5925, 30MHz) |
| 5G NR/LTE | 23dBm (4x2 MIMO) |
| Wi-Fi/Bluetooth | 23dBm (Single antenna) |
| Power | Green |
| Status | Green, Red, Amber |
| Size / Weight | < 368 x 212 x 55 (mm) < 4.5 kg |
| Operating | -34 ~ 74°C |
