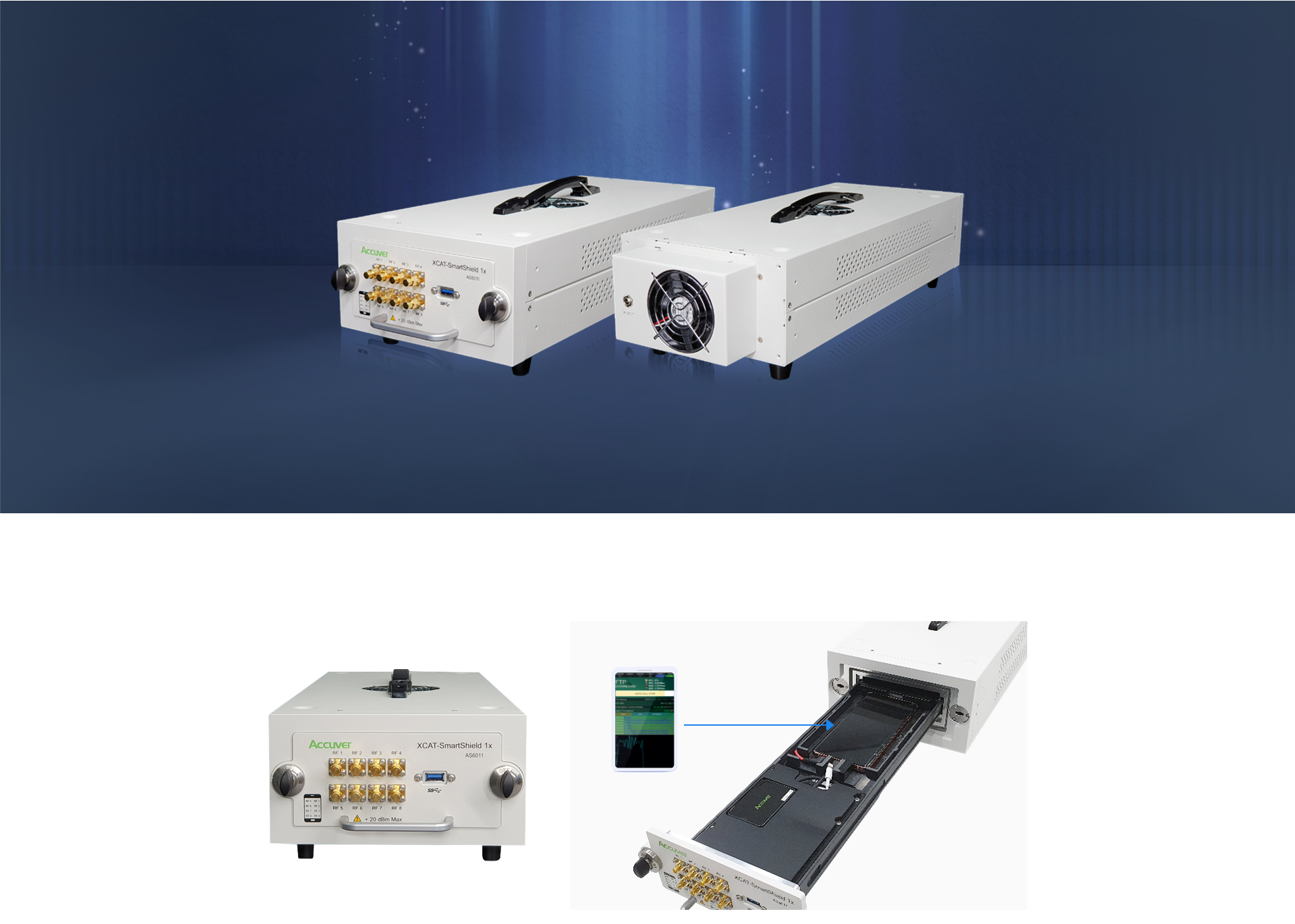

XCAT-SmartShield

XCAT-SmartShield transmits a reference signal through probe antennas. It measures RSRP in a field MIMO environment to allow 1 to 1 connection between BS Tx and UE Rx antenna with physical RF cable connection in a lab area. However some of the recent UE device do not have externally figured antenna connector and unable to open the back cover. XCAT-SmartShield ease this hassle with providing virtual 1 to 1 wireless connection between BS and UE.

Features

ㆍAccurate measurement without external interference with excellent shielding performance
ㆍMinimize OTA (Over the Air) connection loss by applying near-field coupling method
ㆍReliable MIMO testing with reduced cross-talk between antenna ports (with XCAT-MAIS)
ㆍEasy smartphone installation and minimal change in characteristics due to installation
ㆍBuilt-in MOS test module

Functions

ㆍSupport Sub6 and mmWave (up to 40GHz)
ㆍSmartphone Test without external antenna connector
ㆍNo interference from outside (Isolation > 60dB)
ㆍSupport long time 5G NR test

Specification

XCAL-SmartShield Specification table. table contains Item, Smart Shield 1x G2, Smart Shield 4x G2. Item - Frequency Range, RF ports, Connection loss, Cross-talk, Shielding Performance, Max Input Signal Level, Smart Functions, Dimensions, Acceptable UE Size @ max, Weight.
Item	Up to 6GHz	Up to 40GHz
Frequency Range	300~6,000MHz	300~6,000MHz
RF ports	8 ports (SMA female)	12 Ports (2.92mm female)
Connection loss	< 20dB	< 30dB
Cross-talk	< -20dB	TBD
Shielding Performance	> 60dB	> 60dB
Max Input Signal Level	+ 20dBm	+ 20dBm
Smart Functions	Cross-talk cancelling (with XCAT-MAIS)	Cross-talk cancelling (with XCAT-MAIS)
Dimensions	196 x 101 x 500.8 (mm, W x H x D)	220 x 137 x 526.2 (mm, W x H x D)
Acceptable UE Size @ max	180 x 95 x 11 (mm, W x H x D)	180 x 95 x 11 (mm, W x H x D)
Weight	9.3kg	12.4kg
